Description

MOTOR SPECIFICATIONS

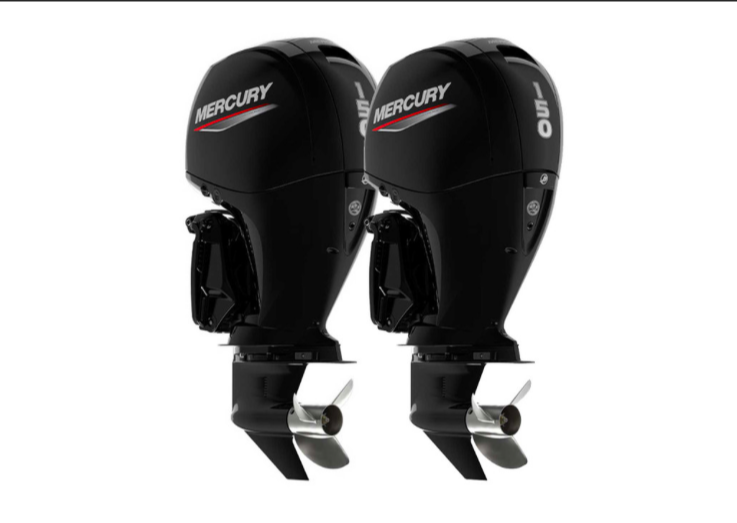

Mercury 150XL Inline 4 Four Stroke & Mercury 150CXL Counter Rotation Inline 4 Four Stroke

Horsepower: 150hp
Cylinders: 4 cyl
Shaft Length: 25″ X-Long
Steering: Remote Mechanical
Starting: Smart Start Electric
Weight: 465 lbs each
Maximum Trim Range: 22° (-6° to 16°)
Maximum Tilt Range: 73° (-6° to 67°)
Alternator: 60 amp / 756 watt (Belt-Driven)
Full Throttle Range: 5000 – 5800 rpm
Displacement: 3.0 L
Fuel System: Electronic Fuel Injection (EFI)
Fuel Induction System: 8-valve, SOHC
Warranty: Mercury Marine 3-Year Warranty

STANDARD FEATURES

Power Trim & Tilt
Counter Rotation (150CXL)
Service Tool Kit & Parts
Stop Switch Lanyard
Owner’s Manual
