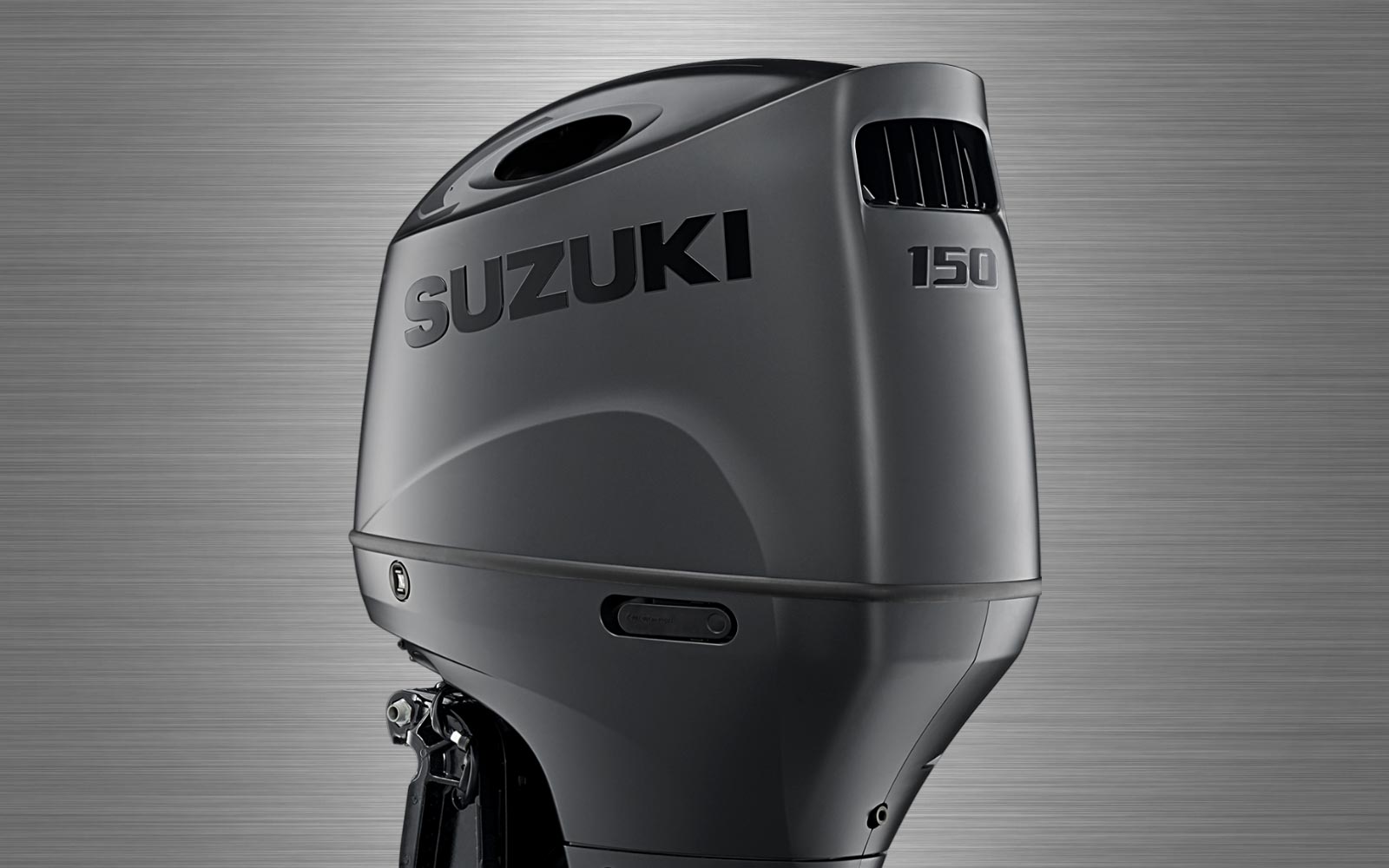

Suzuki DF150A STEALTH Outboard Motor
The DF150A Stealth / Four-Stroke Outboard
POSITIONED FOR GREATNESS.
By positioning the crankshaft in front of the drive shaft, we’ve moved the outboard’s center of gravity forward, making the outboard more compact and increasing its performance. This design also significantly reduces vibration by moving the engine’s axis of inertia—the point where engine vibrations are at a minimum—up over the upper engine mount.

SPECIFICATIONS

MODEL
DF150A STEALTH

RECOMMENDED TRANSOM HEIGHT (INCHES)
L: 20 X: 25

STARTING SYSTEM
Electric

WEIGHT LBS
L: 518 X: 529

ENGINE TYPE
DOHC 24-Valve

FUEL DELIVERY SYSTEM
Multi Point Sequential Electronic Fuel Injection

NO. OF CYLINDERS
4

PISTON DISPLACEMENT INCHES (CC)
124.7 (2044)

BORE X STROKE INCHES (MM)
3.81 x 3.81

MAXIMUM OUTPUT HP
150

OPERATING RANGE (RPM)
5000-6000

STEERING
Remote (Tiller Kit Optional)

CHOKE
N/A

OIL PAN CAPACITY QUARTS (LITER)
8

IGNITION SYSTEM
Solid State Electronic Ignition

ALTERNATOR
12V 44A

TRIM POSITION
Power Trim and Tilt

GEAR RATIO
2.5:1

STANDARD PROPELLER
Optional See Dealer

PROPELLER SELECTION
17″-30″
