Description

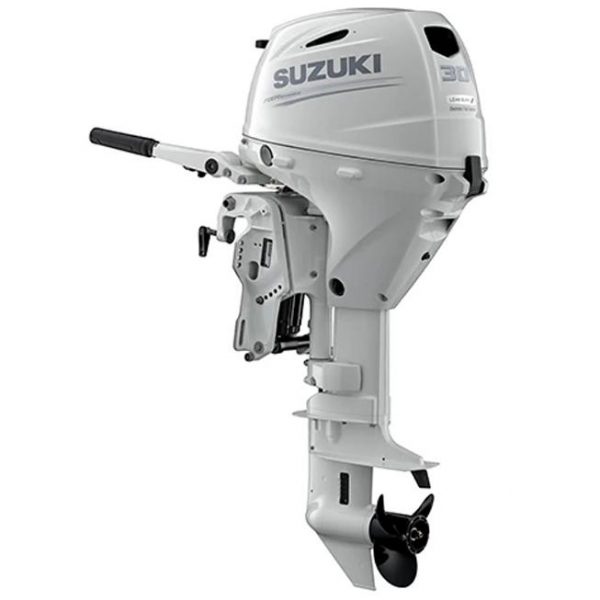

Suzuki 30 HP DF30ATHLW5 Outboard Motor
The modern, clean environmental design makes the new Suzuki 30 HP outboard motor, model: DF30ATHLW5 the most advanced portable outboard on the market today. This is the world’s first portable 30 hp outboard motor designed for fuel efficiency and clean power with a Battery-Less Electronic Fuel Injection engine. The 30 HP Outboard DF30ATHLW5 is an affordable outboard equipped with the 20-inch long shaft, electric start, power trim and tilt, and tiller control. This smooth running “Next Generation” four-stroke delivers a fast start, fast acceleration, and superior performance with amazing fuel economy. The DF30ATHLW5 Suzuki outboard now comes standard with the Suzuki 5 year warranty.


SPECS

MODEL
DF30ATHLW5

WEIGHT
163.0 lb

MANUFACTURER
Suzuki

COUNTRY OF MANUFACTURE
Thailand

HORSEPOWER
30hp

SHAFT LENGTH
20″ (Long)

STEERING
Tiller

STARTING
Electric

TRIM & TILT
Power Trim & Tilt

FUEL DELIVERY
EFI

FUEL TANK
External

CYLINDER(S)
3

DISPLACEMENT
29.8 (489)

BORE AND STROKE
2.80 x 2.68 ()

FULL THROTTLE RPM RANGE
5300 – 6300

IGNITION SYSTEM
Digital CDI

INDUCTION SCAVENGING
SOHC

VALVES PER CYLINDER
4

FUEL TYPE
Unleaded Gasoline (87 octane)

OIL TYPE
SAE 10W-30 or SAE 10W-40

OIL CAPACITY
1.6 (1.5)

LUBRICATION
Wet Sump; Trochoid Type Cam-Driven Oil Pump

ALTERNATOR
Electric 12V 14A

COOLING SYSTEM
Water-Cooled

SALTWATER RATED
Yes

GEAR RATIO
2.09:1

GEAR SHIFT
Forward-Neutral-Reverse (front-mounted lever)

PROPELLER
3 x 10.25 x 12


IN THE BOX

6 gal Fuel Tank
Fuel Line
Owner’s Manual
Aluminum Propeller
Tool Kit
Suzuki 5 Year Warranty
