Description

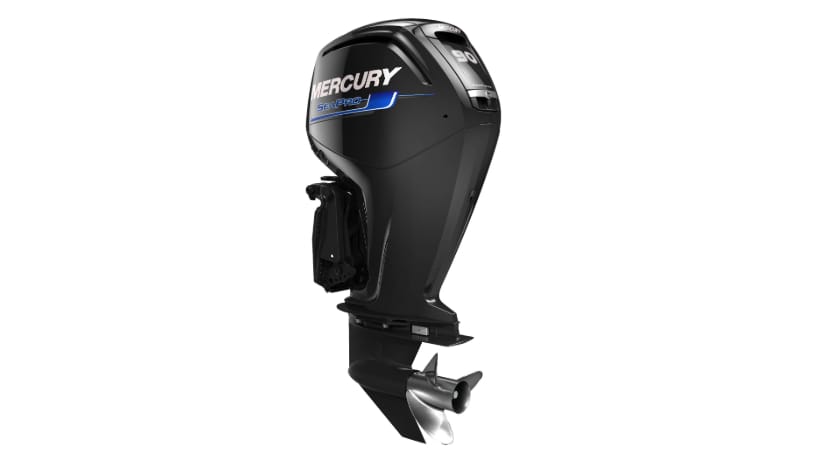

2022 Mercury 90ELPT SeaPro® Command Thrust

Horsepower: 90
Engine type: Inline 4 , 8-valve single overhead cam (SOHC)
Displacement (CID/CC): 60.8/995
Displacement (L): 2.1
Bore and stroke: 3.5 x 3.2″ / 90 x 81 mm
Full throttle RPM: 5000-5500
Shaft length: 20 ”
Gearcase ratio: 2.38:1
Alternator amp / Watt: 35 amp / 441 watt
Shallow water trim range: 20 °
Maximum Trim Range: 22° (-6° to 16°)
Maximum Tilt Range: 70° (-6° to 64°)
Dry weight: (lightest model in its category) 363 lbs

Air induction: Performance-Tuned Scroll Intake Manifold
Engine protection operator warning system: SmartCraft Engine Guardian
Compatible with SmartCraft digital technology (DTS ): Yes
Starting: Smart Start Electric
Controls: Mechanical throttle & shift (sold separately)
Steering: Remote
Fuel induction system: Electronic Fuel Injection (EFI)
CARB star rating: 3
Ignition: SmartCraft ECM 07 Digital Inductive
Fuel system: Electronic Fuel Injection (EFI)
Lubrication system: Wet sump
Cooling system: Water-cooled with thermostat
Gear shift: F-N-R
Gearcase: Command Thrust
Trim system: Power Trim & Tilt
Exhaust system: Through prop

Recommended fuel: Unleaded Regular 87 Octane Minimum (R+M/2) or 90 RON 10% Ethanol Maximum
Recommended oil: NMMA Certified FCW SAE 25W-40 Synthetic Blend
Oil Capacity: 5.5

Equipment

Please ask our sales staff for a propeller that fits the best to your needs!

Propeller: not included

Color: Phantom Black
