Description

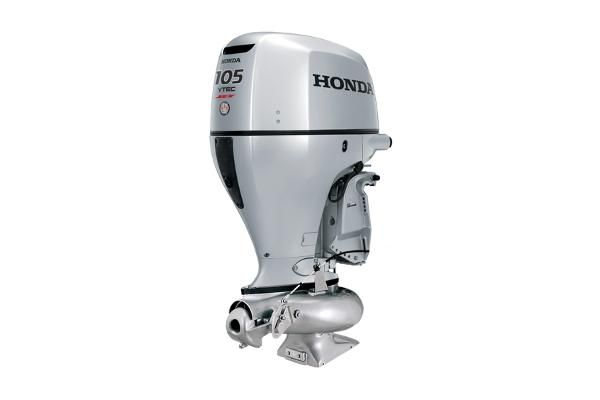

Honda 105 hp JET Drive Outboard Motor

SPECIFICATIONS

ENGINE
105 JET

Type
4-Stroke DOHC 4 Cylinder/16 Valves

Displacement
2,354 cc (144 cubic inches)

Bore & Stroke
87 mm x 99 mm (3.4 x 3.9 inches)

Full Throttle RPM Range
5,000-6,000 RPM

Rated Power
105 HP @ 5,500 RPM

Cooling System
Water Cooled

Fuel Delivery
Programmed Fuel Injection

Ignition System
MicroComputer Programmed

Starting System
Electric

Exhaust
Through Hub

Lubrication
Wet Sump

Trim Range
-4° to +16°

Tilt Range
72°

DRIVE
105 JET

Gear Ratio
Direct Drive

Gear Shift
F-N-R

EQUIPMENT
105 JET

Alternator (Electric Start)
51 Amp

Battery Charging Power
30 Amp (1000 RPM), 40 Amp (2000+ RPM)

Propeller
NA (No prop)

Power Tilt
NA

Power Trim & Tilt
Standard

Gas Assisted Tilt
NA

Oil Pressure Alert
Standard

Temperature Alert
Standard

Rev-Limiter
Standard

Speedometer Pickup
Standard

DIMENSIONS
105 JET

Overall Width
580 mm/22.8 inches

TRANSOM HEIGHT
105 JET

L Type
635 mm/25 inches

DRY WEIGHT
105 JET

L-Type
TBD
