Description

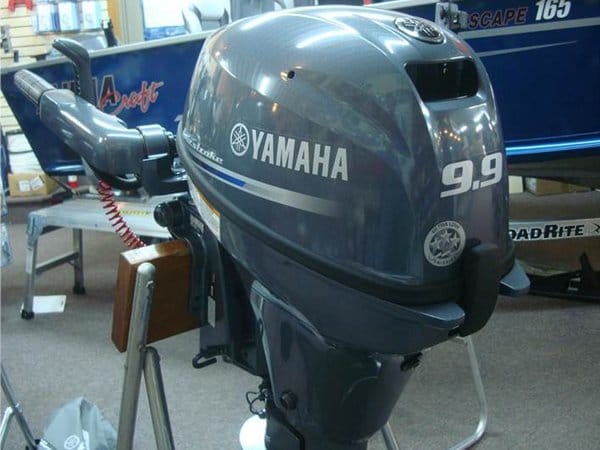

2020 Yamaha 9.9 HP F9.9SMHB Outboard Motor
Model Specific Features

Available for remote mechanical or tiller-handle control
Only 87 pounds
Available in 15” and 20” and 25” (T9.9 only) shaft lengths
Solid 6-amp alternator

Specifications

Engine Type: 2 cyl
Displacement: 212cc
Bore x Stroke: 56 x 43mm (2.20 x 1.70 in.)
Prop Shaft Horsepower: 9.9hp @ 5500rpm
Full Throttle RPM Range: 5000 ~ 6000
Alternator Output at W.O.T.: 6
Compression Ratio: 9.4:1
Fuel Induction System: Carb
Weight*: 39 kg (87 lbs)
Recommended Fuel: Octane 87
Recommended Engine Oil: Yamalube® 4M (See owner’s manual)
Recommended Fuel Filtration: Yamaha 10-Micron Fuel/Water Separating Filter (external)
C.A.R.B. Rating: 3-Star
Exhaust: Through Propeller
Intake: 4
Ignition: CDI Microcomputer
Spark Plug: BR6HS-10
Alternator Output: 6
Starting System: Electric & Manual
Lubrication: Wet Sump
Engine Oil Capacity: 0.8L
Recommended Cooling: Thermostatic Control
Ethanol Blend Limit: 10% Maximum
Gear Ratio: 2.08:1
Gear Shift: Forward, Neutral, Reverse
Shaft Length: 15″
Degree of Tilt: 71°
Degree of Trim: -4° through +16°
Dry Weight: 39 kg (87 lbs)
Mounting Centers: N/A
Steering Angle (maximum): 43° from center, either direction
Warranty: Limited 3-Year Pleasure, 3-Year Government, 1-Year Commercial
