Description

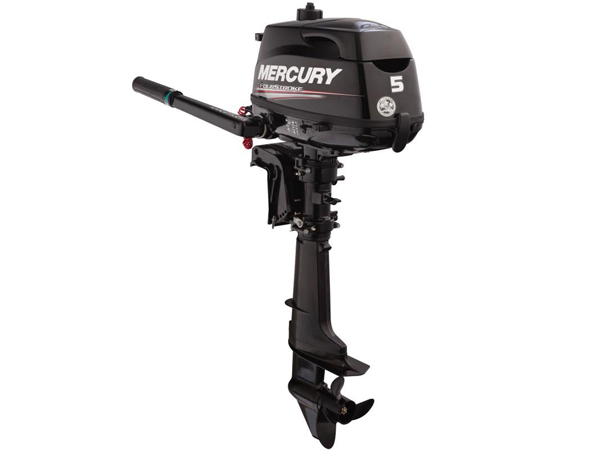

2019 Mercury 5 HP 5MLHA Sail Power Outboard Motor

Mercury Model # MLHA is a 2018 5HP outboard motor that is perfect for powering small sail boats, jon boats and drift boats. The 58 lb. 5 HP Mercury outboard is also perfect for auxiliary power for your sailboat. Mercury Outboard engines are known for reliable, efficient power at an affordable price. A larger carburetor and propeller provide for the extra power you crave on the water. The Mercury 5 HP outboard model # 5MLHA is equipped with the 20 inch long shaft, an integrated gas tank, manual rope start, forward, neutral and reverse shift, high thrust prop and 12V alternator.? ? The Mercury Factory warranty begins on date of purchase.

2019 Mercury 5 HP 5MLHA Sail Power Outboard Motor

MODEL
5MLHA

MODEL YEAR
2019

SKU
5MLHA-19

WEIGHT
58.0 lb

MANUFACTURER
Mercury

COUNTRY OF MANUFACTURE
Japan

HORSEPOWER
5hp

SHAFT LENGTH
20″ (Long)

STEERING
Tiller

STARTING
Manual

TRIM & TILT
Manual

FUEL DELIVERY
Carburetor

FUEL TANK
Internal

CYLINDER(S)
1

DISPLACEMENT
123 cc (7.5 cubic inches)

BORE AND STROKE
59 x 45 mm (2.32 x 1.77 inches)

FULL THROTTLE RPM RANGE
4500-5500

IGNITION SYSTEM
Digital CD Ignition w/Electronic Spark Advance

INDUCTION SCAVENGING
OHV

VALVES PER CYLINDER
2

FUEL TYPE
87 Octane (up to 10% ethanol content)

FUEL TANK / FUEL LINE
0.3 US Gallon (1.15 liter)

OIL TYPE
SAE 10W-30 (Mercury 4-Stroke Outboard Oil)

OIL CAPACITY
15 fl. Oz. (450 ml)

LUBRICATION
Trochoid Pump

ALTERNATOR
4 / 2 amp / 50 / 25 watt with Charging Cord

COOLING SYSTEM
Water-Cooled, Thermostatically Controlled

SALTWATER RATED
Yes

GEAR RATIO
2.15:1

GEAR SHIFT
Forward-Neutral-Reverse (forward mounted shift lever)

PROPELLER
6.0″ Pitch High Thrust 3-Blade Aluminum

2019 Mercury 5 HP 5MLHA Sail Power Outboard Motor

Compact and Lightweight
4 / 2 amp / 50 / 25 watt Charging System
Digital CD Ignition with Spark Advance
High Grade Marine Alloy Construction
Stainless Steel Water Pump Housing
Zinc Coated Water Passages
Rated for Saltwater Use
Sacrificial Zinc Anodes
Forward-Neutral-Reverse Gear Shift
Adjustable Steering Tension Control
Forward Mounted Gear Shift Selector
Twist-Grip Throttle with Tension Control
Integrated Carry Handle
Thermostat Controlled Water Cooling
Shallow Water Drive; 6 Trim Positions
Quiet Through-Propeller-Hub Exhaust
6″ Pitch High Thrust Aluminum Propeller
1.15 Liter (.30 Gallon) Integral Fuel Tank
Start-In-Gear Protection
Low Oil Pressure Warning Indicator
ESG Over-Rev Protection
Safety Lanyard Stop Switch
Owner’s Manual
Mercury Marine 3-Year Warranty

2019 Mercury 5 HP 5MLHA Sail Power Outboard Motor

In The Box

Integral Fuel Tank (0.3 gal)
Owner’s Manual
Mercury 3-Year Warranty
Aluminum Propeller
Mercury 4-Stroke Oil
Tool Kit
