Description

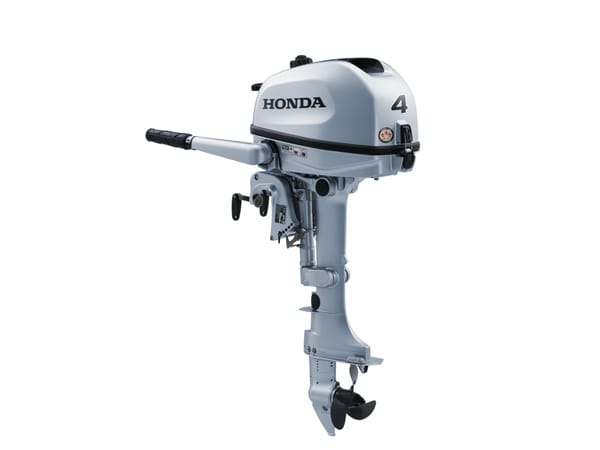

2018 Honda 4 Hp BF4DHLHNA Outboard Motor

The new Honda 4 HP outboard motor is everything you want in a portable outboard. From comfortable carrying handles to a one touch stop switch to the longest run time in its class, this is a motor that redefines what a portable should be. The BF4 outboard motor is lightweight, fuel efficient and ideal for small tenders, canoes, jon boats, and inflatables. This best-in-class 4 HP motor is available with the internal fuel tank and in 15 and 20 inch shaft models. The new Honda 4 HP is another best-in-class portable outboard.

2018 Honda 4 Hp BF4DHLHNA Outboard Motor

Reliable, efficient 4-stroke design
Lightweight and Compact
Convenient Fold-Down Tiller Handle
Large Displacement Engine for more power
Twist grip throttle – more comfortable to use
True 5 Warranty – high-quality peace of mind
4-Front Corrosion Protection System – Fights the elements
Digital CD Ignition – easy starting
Low Oil Warning and RPM Reduction Alerts
Easy to carry and install
New Isolation Mounts – Reduced Vibration for Comfort and Durability
Shallow Water Drive
F-N-R Gearshift
Wet Sump Lubrication – better durability
Ultra Low 3 Star CARB Emissions
Optional 6 amp charging system
Decompression Mechanism for easy starts
Easy One-Push and Release Stop Button
1.5L internal tank (only)

2018 Honda 4 Hp BF4DHLHNA Outboard Motor

MODEL
BF4DHLHNA

MODEL YEAR
2018

SKU
BF4DHLHNA-18

WEIGHT
60.6000

MANUFACTURER
Honda

COUNTRY OF MANUFACTURE
China

HORSEPOWER
4hp

SHAFT LENGTH
20″ (Long)

STEERING
Tiller

STARTING
Manual

TRIM & TILT
Manual

FUEL DELIVERY
Carburetor

FUEL TANK
External

CYLINDER(S)
1

DISPLACEMENT
127 cc (7.8 cubic inches)

BORE AND STROKE
60 x 45 mm (2.4 x 1.8 in.)

FULL THROTTLE RPM RANGE
4500-5500 RPM

IGNITION SYSTEM
Digital CDI

INDUCTION SCAVENGING
OHV

VALVES PER CYLINDER
2

FUEL TYPE
Unleaded Gasoline (87 octane)

FUEL TANK / FUEL LINE
Internal (1.5 L) only

OIL TYPE
FC-W 10W-30

OIL CAPACITY
Please inquire.

LUBRICATION
Wet Sump

ALTERNATOR
OPTIONAL 6 amp (installation required)

COOLING SYSTEM
Water Cooled

SALTWATER RATED
YES

GEAR RATIO
2.08:1

GEAR SHIFT
Forward, Neutral, Reverse

PROPELLER
7-7/8″ Dia. x 7-1/2″ Pitch 3-Blade Aluminum

INTERNAL BATTERY
No

2018 Honda 4 Hp BF4DHLHNA Outboard Motor
WHAT’S IN THE BOX?

Aluminum Propeller
Owner’s Manual & Tool Kit
True 5-Year Warranty
