2017 Tohatsu 15 HP MFS15DS Outboard Motor

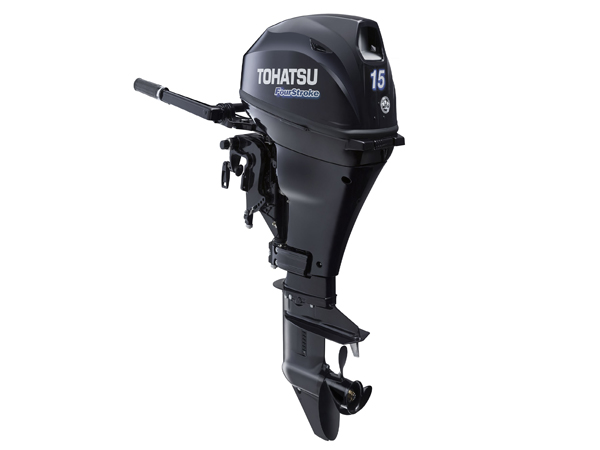

The Tohatsu 15 HP outboard motor, Model #MFS15DS with the 15 inch short shaft, tiller steering and manual rope start is both affordable and perfect for larger sized jon boats, skiff or larger inflatable boats. Based on dependability and efficiency, Tohatsu’s 15 HP outboard was named as top choice in the 15 hp outboard motor class in Boating Magazine’s Buyer Guide. This powerful portable delivers the power you need at a price that will not break the bank.

Standard features include forward, neutral and reverse shift lever on the front of the engine, a 3.1 gallon external fuel tank and a 5 year factory warranty.

2017 Tohatsu 15 HP MFS15DS Outboard Motor

Decompression Device for Easy Starting
Advanced Digital CD Ignition System
Low Oil Pressure Warning System
ESG Over Rev RPM Limiter
High Grade Marine Alloy Construction
Stainless Steel Water Pump Housing
Zinc Coated Water Passages
Easy to Replace Canister Style Oil Filter
Sacrificial Zinc Anodes + Trim Tab
Forward-Mounted Gear Shift Lever
Twist-Grip Throttle with Tension Control
Adjustable Steering Friction Setting
Tuned Intake for Crisp Acceleration
Carburetor Accelerator Pump
Start-In-Gear Protection
Thermostatically Controlled Cooling
Advanced Cross Flow Induction System
Shallow Water Drive; 6 Trim Positions
Quiet Through-the-Propeller Exhaust
3.1 Gallon Fuel Tank / Fuel Line
Safety Lanyard Cut-Off Switch
Operating Manual & Emergency Tool Kit
Tohatsu 5-Year Warranty

2017 Tohatsu 15 HP MFS15DS Outboard Motor

Model
MFS15DS

Model Year
2017

SKU
MFS15DS-17

Weight
114.4000

Manufacturer
Tohatsu

Country of Manufacture
Japan

Horsepower
15hp

Shaft Length
15″ (Short)

Steering
Tiller

Starting
Manual

Trim & Tilt
Manual

Fuel Delivery
Carburetor

Fuel Tank
External

Cylinder(s)
2

Displacement
351 cc (21.41 cubic inches)

Bore and Stroke
61 x 60 mm (2.40 x 2.36 inches)

Full Throttle RPM Range
5,000-6,000 RPM

Ignition System
Digital CD Ignition

Induction Scavenging
SOHC

Valves per Cylinder
2

Fuel Type
Unleaded Gasoline (87 octane)

Fuel Tank / Fuel Line
3.1 Gal. Fuel Tank + Quick Connect Fuel Line

Oil Type
SAE 10W-30 or SAE 10W-40 (SF, SG, SH, SJ)

Oil Capacity
1 Quart (1000 ml)

Lubrication
Wet Sump

Alternator
Optional 12V 145W 12A (installation required)

Cooling System
Water-Cooled, Thermostatically Controlled

Saltwater Rated
Yes

Gear Ratio
2.15:1

Gear Shift
Forward-Neutral-Reverse (front mount shifter)

Propeller
9.2″ Dia. X 9.8″ Pitch 3-Blade Aluminum

Internal Battery
No

2017 Tohatsu 15 HP MFS15DS Outboard Motor
What’s in the box?

Fuel Tank (3.1 gallon)
Quick Connect Fuel Line
Aluminum Propeller
Owner’s Manual & Tool Kit
Tohatsu 5-Year Warranty
