Description

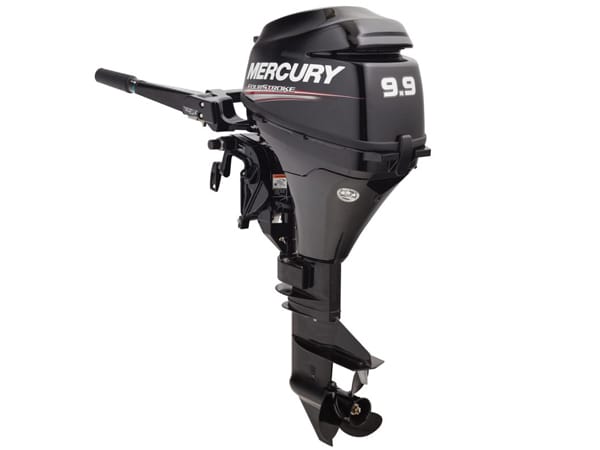

2017 Mercury 9.9 HP 9.9MXLH Outboard Motor

The Mercury 9.9 outboard engine is the right choice for sailboat and kicker applications. The 9.9 HP Mercury Outboard Motor model: 9.9MXLH is an affordable outboard, equipped with an extra long 25 inch shaft and manual start, Mercury’s 3 year factory warranty, and auto ratchet trim and multi function tiller control.

2017 Mercury 9.9 HP 9.9MXLH Outboard Motor

Compact and Lightweight
Digital CD Ignition with Spark Advance
High Grade Marine Alloy Construction
Stainless Steel Water Pump Housing
Zinc Coated Water Passages
Rated for Saltwater Use
Sacrificial Zinc Anodes and Trim Tab
Tiller Integrated F-N-R Gear Shifting
Adjustable Steering Tension Control
Twist-Grip Throttle with Tension Control
Thermostat Controlled Water Cooling
Auto Ratchet Trim System (5 positions)
Shallow Water Drive
Quiet Through-Propeller-Hub Exhaust
3.2 Gallon Fuel Tank and Fuel Line
Start-In-Gear Protection
Low Oil Pressure Warning Indicator
ESG Over-Rev Protection
Safety Lanyard Stop Switch
Owner’s Manual
Mercury Marine 3-Year Warranty

2017 Mercury 9.9 HP 9.9MXLH Outboard Motor

Model
9.9MXLH

Model Year
2017

SKU
9.9MXLH-17

Weight
89.0000

Manufacturer
Mercury

Country of Manufacture
Japan

Horsepower
9.9hp

Shaft Length
25″ (Extra Long)

Steering
Tiller

Starting
Manual

Trim & Tilt
Manual

Fuel Delivery
Carburetor

Fuel Tank
External

Cylinder(s)
2

Displacement
208 cc (12.8 cubic inches)

Bore and Stroke
55 x 44 mm (2.16 x 1.73 inches)

Full Throttle RPM Range
5000-6000

Ignition System
Digital CD Ignition w/Electronic Spark Advance

Induction Scavenging
SOHC

Valves per Cylinder
2

Fuel Type
87 Octane (up to 10% ethanol content)

Fuel Tank / Fuel Line
3.2 Gal. Fuel Tank + Quick Connect Fuel Line

Oil Type
SAE 10W-30 (Mercury 4-Stroke Outboard Oil)

Oil Capacity
27 fl. Oz. (800 ml)

Lubrication
Trochoid Pump

Alternator
Optional 12V 76W 6A (installation required)

Cooling System
Water-cooled with thermostat

Saltwater Rated
YES

Gear Ratio
2.08:1

Gear Shift
Forward-Neutral-Reverse (shift in tiller handle)

Propeller
8.5″ Diameter X 8.0″ Pitch 3-Blade Aluminum

Internal Battery
No

2017 Mercury 9.9 HP 9.9MXLH Outboard Motor
What’s in the box?

Fuel Tank (3.2 gallon)
Quick Connect Fuel Line
Mercury 3-Year Warranty
Aluminum Propeller
Mercury 4-Stroke Oil
Owner’s Manual & Tool Kit
