Description

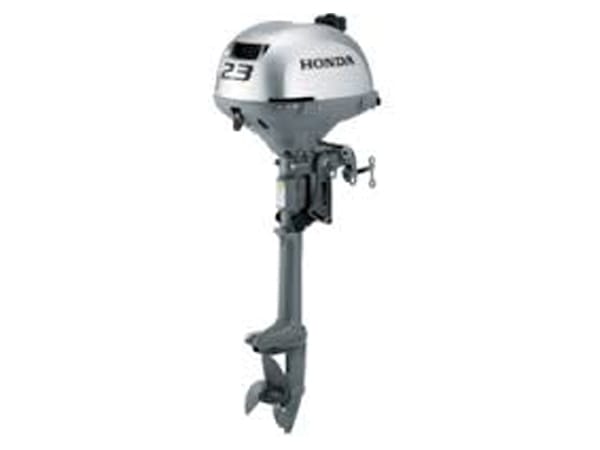

2017 HONDA 2.3 HP BF2.3DHSCH Outboard Motor

The 2.3 HP Honda outboard, with it’s advanced technology, gives you an extra hour of performance on a single tank of gas over other outboards in it’s class. Honda’s high tech motors are the lightest, most compact portable outboards, without sacrificing power, quality or durability. Model 2.3DKSCH Honda outboard is equipped with a 15 inch short shaft and is perfect for small tenders, jon boats or canoes. With the best warranty in the business, you can not go wrong with the Honda 2.3 HP outboard motor.

2017 HONDA 2.3 HP BF2.3DHSCH Outboard Motor

Reliable, efficient 4-stroke design
More power – without sacrificing portability
Lightweight and compact
Precise Throttle Control
Forced air cooled engine – no water pump worries
Ultra low 3 star CARB emissions – Environmentally concious technology
True 5 Warranty – high-quality peace of mind
Easy starting, maintenance free transistor ignition
Easy to carry and install
360° swivel steering – added manueverability
Centrifugal clutch – better performance
Convenient fold down tiller
4-Front Corrosion Protection System – Fights the elements
Internal fuel tank – easier portability
Easy maintenance
Steering friction adjustment
Adjustable trim
Shallow Water Drive
Propeller included
Carburetor drain screw for easy storage prep
Dual lockable transom clamps
Sheer and cotter pin keeper
15 and 20 inch configurations

2017 HONDA 2.3 HP BF2.3DHSCH Outboard Motor

MODEL
BF2.3DHSCH

MODEL YEAR
2017

SKU
BF2.3DHSCH-17

WEIGHT
29.5000

MANUFACTURER
Honda

COUNTRY OF MANUFACTURE
China

HORSEPOWER
2.3hp

SHAFT LENGTH
15″ (Short)

STEERING
Tiller

STARTING
Manual

TRIM & TILT
Manual

FUEL DELIVERY
Carburetor

FUEL TANK
External

CYLINDER(S)
1

DISPLACEMENT
57.2 cc (3.49 cubic in)

BORE AND STROKE
45 x 36 mm (1.8 x 1.4 inches)

FULL THROTTLE RPM RANGE
5,000-6,000 RPM

IGNITION SYSTEM
Transitorized Pointless

INDUCTION SCAVENGING
OHV

VALVES PER CYLINDER
2

FUEL TYPE
Unleaded Gasoline (86 octane)

FUEL TANK / FUEL LINE
.29 US gal (1.1L)

OIL TYPE
FC-W 10W-30

OIL CAPACITY
Please inquire.

LUBRICATION
Oil Slinger System

ALTERNATOR
N/A

COOLING SYSTEM
Forced Air

SALTWATER RATED
YES

GEAR RATIO
2.42:1

GEAR SHIFT
360 Degree Pivot

PROPELLER
7-1/4″ Dia. x 4-3/4″ Pitch 3-Blade Polypropylene

INTERNAL BATTERY
NO

2017 HONDA 2.3 HP BF2.3DHSCH Outboard Motor
WHAT’S IN THE BOX?

Internal Fuel Tank
3 Blade Polypropylene Propeller
Owner’s Manual & Tool Kit
True 5-Year Warranty
